Huashi powder filling masterbatch granulator plastic granulator

The Chinese English name is PULVISTALCI, which is a white or almost white, fine, sand free powder that feels greasy to the touch. Odorless and tasteless. This product is insoluble in water, dilute mineral acid, or dilute hydroxide alkaline solutions. Can be used for medicinal purposes. Talc has excellent physical and chemical properties such as lubrication, anti adhesion, flow aid, fire resistance, acid resistance, insulation, high melting point, inactive chemical properties, good covering power, softness, good gloss, and strong adsorption. Due to its layered crystal structure, it has a tendency to easily crack into scales and special lubricity. It is used as a reinforcing and modifying filler in chemical industries such as rubber, plastics, and paint. Features: Increase the stability of product shape, increase tensile strength, shear strength, winding strength, pressure strength, decrease, elongation, coefficient of thermal expansion, high whiteness, and strong particle size uniformity and dispersion.

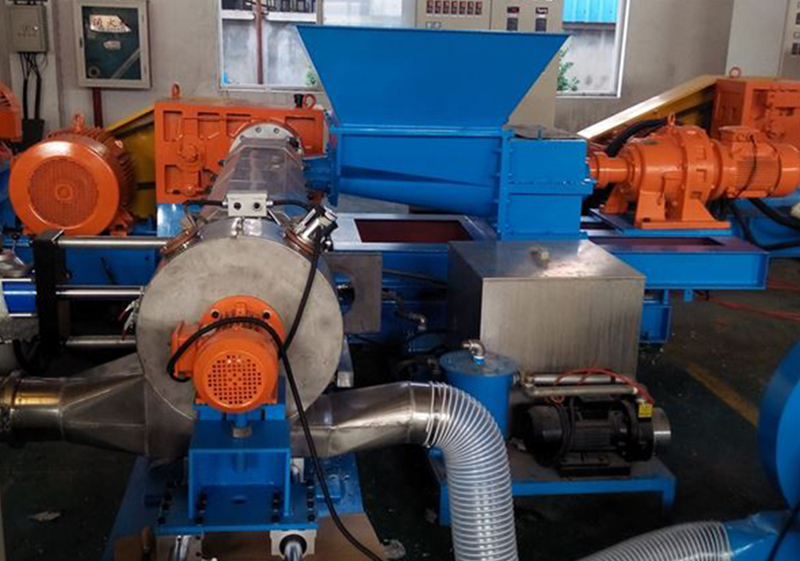

2、 This set of plastic blending/granulation equipment is a professional unit designed for the production of Huagao filling masterbatch. This includes preheating and mixing of raw materials, mixing and kneading, extrusion, cutting and cooling of rubber particles, screening and collection. Suitable for processing raw materials such as rubber and plastic. This equipment has the following advantages: the unit is equipped with internal mixing and single screw; Excellent mixing effect and accurate temperature control; Use smaller electricity and land area. The mixing and production process of raw materials is simple and convenient to operate, reducing personnel operation. The elevator and mixer are automatically interlocked, adopting an automatic feeding function, which can automatically delay and return to the original position during the pouring process. The Huagao filling masterbatch granulator does not require special operating techniques and can produce high-quality products with excellent safety. Accurate temperature control reduces damage and waste of raw materials.

3、 Mixer: generally composed of an mixing chamber, two relatively rotating rotors, upper and lower top bolts, temperature measurement system, heating and cooling system, exhaust system, safety device, discharge device, and recording device. The surface of the rotor has spiral protrusions, with the number of protrusions including two, four, six, etc. The geometric shapes of the rotor section can be triangular, cylindrical, or elliptical, and there are two types: tangential and meshing. The temperature measurement system is composed of thermocouples, mainly used to measure the changes in temperature inside the mixing chamber during the mixing process; The heating and cooling system is mainly used to control the temperature of the surface of the rotor and mixing chamber walls. The internal mixer of the Huagao filling masterbatch granulator uses a lifting machine, a double arm feeding machine, an extruder, cutting, cooling, screening, and all terminal material silos are automated. The Huagao filling masterbatch granulator operates in a continuous flow. After material mixing, it can be forced into a single screw, which is fully dispersed without excessive frictional heat. Excellent dispersion effect, low main current of Huagao filling masterbatch granulator, energy-saving and environmentally friendly. This machine is used for the production of PVC, low smoke and halogen-free cable materials, inner and outer shielding cable materials, chlorinated polyethylene, functional masterbatch, color masterbatch, heat shrink material, PP+carbon black low smoke and halogen-free series plastic raw materials, including the main machine, double wrist forced feeding, Huagao filling masterbatch pelletizer mold surface hot cutting, etc. The raw materials released by the internal mixer are squeezed into the pelletizer through a cone double feeding machine, and then cut into particles through a single screw extrusion, The material is sent to the cyclone separator through the stainless steel pipeline using a low-noise fan with a blowing type stainless steel hot cutting cover. It is then passed through a two-stage cyclone separator to a vibrating screen. The vibrating screen is used to screen out the continuous and powdered materials. After taking the finished product, the material is directly fed into the packaging bin using a fan for cooling. The entire production process operation of the Huashigao filling masterbatch granulator is completed.
