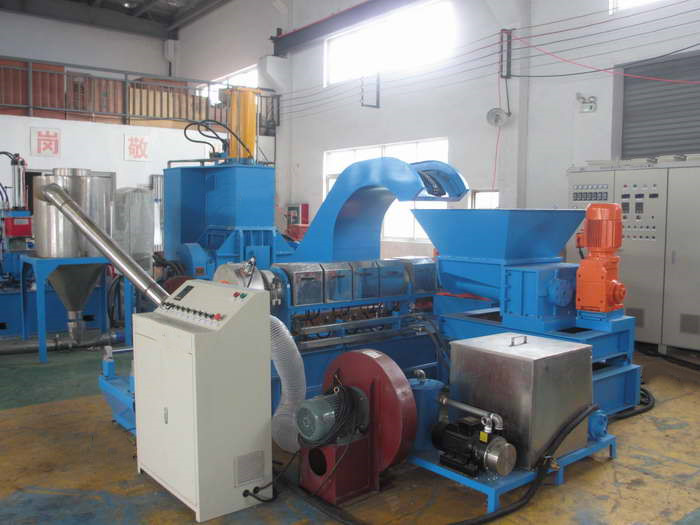

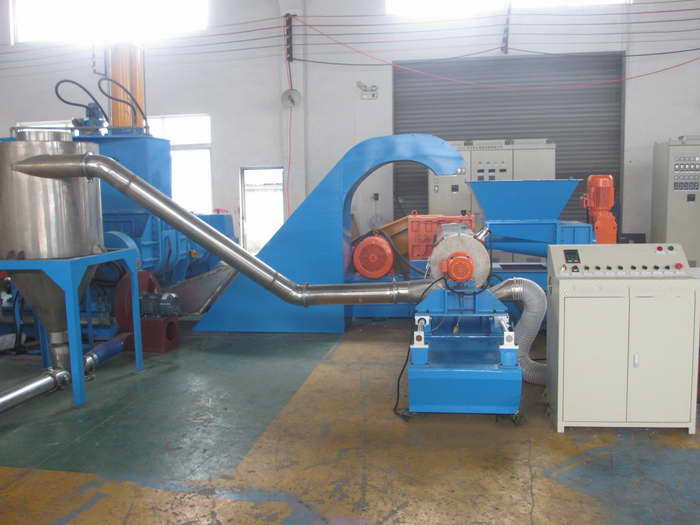

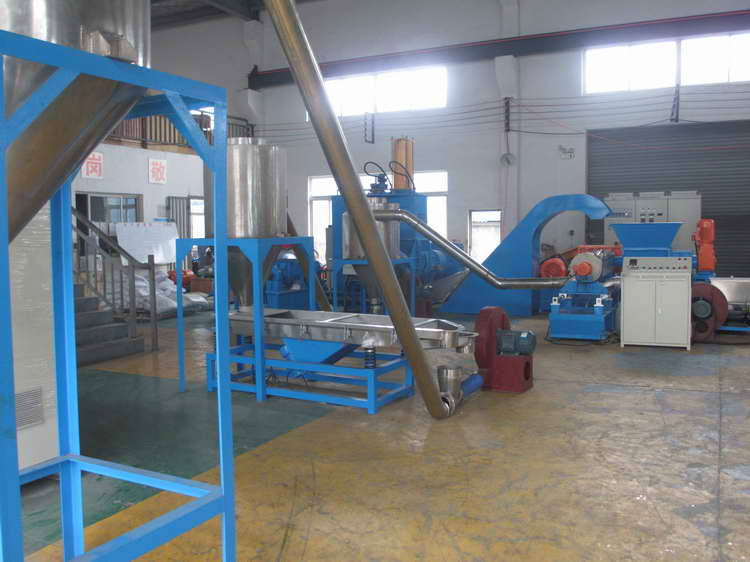

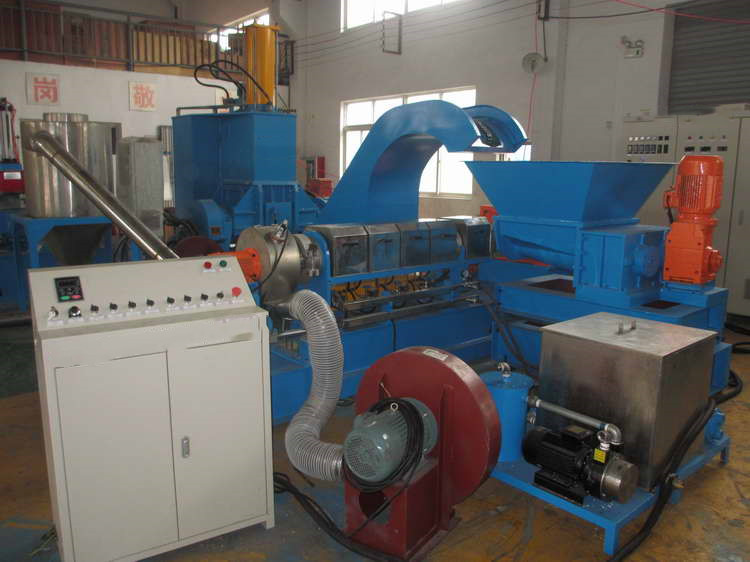

Stone Paper Masterbatch Granulator

Description:Complete Set of Stone Paper Making Equipment I. Stone paper making equipment Three-ring central micronizer: The output is 2 - 3 tons per hour. The equipment power is 30 KW. The grinding fineness is 300 - 3000 MU. It weighs 40 tons. The equipment occupies an area of 100 square meters and is 5 meters high. Calcium carbonate powder pelletizer: The output is 1 ton per hour. The equipment is equipped with a drying system and an automatic feeding system, covering an area of 200 square meters. It can produce 1 ton of stone paper per hour. The equipment power is 200 KW. Functions: It is equipped with an automatic pellet - feeding system, front and rear automatic thickness - measuring scanning systems, and can automatically report faults and carry out maintenance. It is monitored by six computers. It uses screws imported from the United States, imported grinding heads, and imported thickness - measuring scanners. It has automatic weighing and automatic winding functions. The equipment occupies an area of 500 square meters and is 4 meters high. Microcomputer coating equipment: The equipment can perform two - way automatic coating with a microcomputer at a speed of 20 meters per minute. The equipment power is 24 KW. The equipment is 3 meters wide and 6 meters long. II. Equipment configuration: Internal mixer ---- Elevator ---- Conical twin - screw feeder ---- Single - screw pelletizer ---- Opposite - blowing hot - cutting head ---- Primary cyclone separator ---- Secondary cyclone separator ---- Extended air - cooled vibrating screen ---- Finished product silo 3. Stone paper base paper extrusion equipment: Three - screw internal mixing extrusion, four - roll calendering, cooling, and casting stretching system with a width of 1200 mm.
