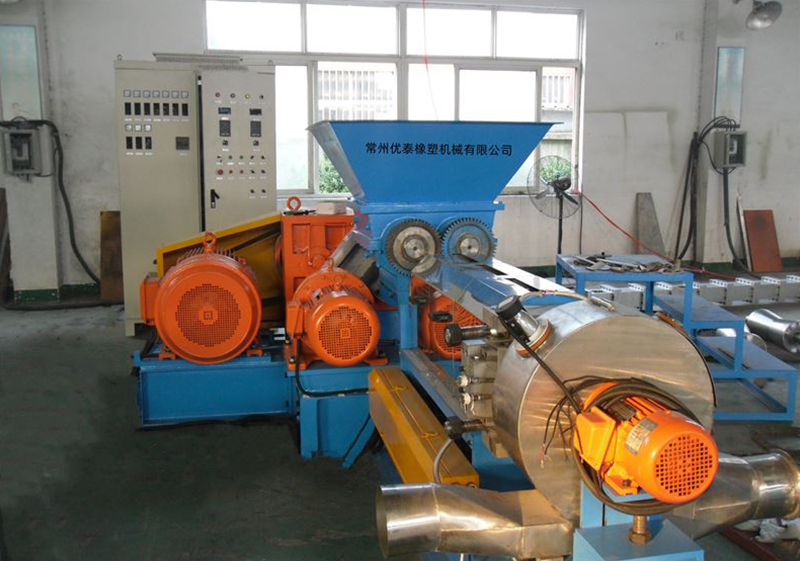

PVC foaming granulator

1： This set of plastic blending/granulation equipment is a professional unit designed for the production of PVC foam masterbatch plastics. This includes preheating and mixing of raw materials, mixing and kneading, extrusion, cutting and cooling of rubber particles, screening and collection. Suitable for processing raw materials such as rubber and plastic. This equipment has the following advantages: the unit is equipped with internal mixing and single screw; Excellent mixing effect and accurate temperature control; Use smaller electricity and land area. The mixing and production process of raw materials is simple and convenient to operate, reducing personnel operation. The elevator and mixer are automatically interlocked, adopting an automatic feeding function, which can automatically delay and return to the original position during the pouring process. This set of equipment does not require special operating techniques and can produce high-quality products with excellent safety. Accurate temperature control reduces damage and waste of raw materials.

2、 The bulk material of the PVC foam masterbatch pelletizing machine is fully automated through the elevator, double wrist feeding machine, extruder, pelletizing, cooling, screening, and terminal material bin. The PVC foam masterbatch pelletizing machine operates in a streamlined manner. After material mixing, it can be forced into a single screw, which is fully dispersed without excessive frictional heat. Excellent dispersion effect, low main current of PVC foam masterbatch granulator, energy-saving and environmentally friendly. This machine is used for the production of PVC foam masterbatch pelletizer functional masterbatch, color masterbatch, heat shrink material, PP+carbon black low smoke halogen-free series and other plastic raw materials. The PVC foam masterbatch pelletizer mold surface hot cutting and other systems squeeze the raw materials released by the internal mixer into the pelletizer through both wrists, and then cut into particles through a single screw extrusion. The materials are sent to the cyclone separator through the stainless steel pipeline using a blowing stainless steel hot cutting cover and a low-noise fan, After passing through a two-stage cyclone separator to a vibrating screen, the continuous and powdered materials are screened out using the vibrating screen. After taking the finished products, the materials are directly fed into the packaging bin by a fan for cooling. The entire production process operation is completed.
